Silvana Node

Silvana’s infrastructure relies on a network of nodes assigned to perform the following functions:
  • Coordination of proving and execution for Silvana apps;
  • Ensuring Silvana OS interface availability via gPRC locally for running agents;
  • Monitoring proof jobs, app operation, logs and metrics via OpenTelemetry gRPC push to New Relic.

​
Hardware requirements

These are the recommended performance requirements for a Silvana node.
Minimal Hardware RequirementsOptimal Hardware Requirements
  • 8 CPU
  • 16 GB RAM
  • 100 GB disk to hold docker images of the agents
  • 16–32 CPU
  • 32–64 GB RAM
  • 200 GB disk to hold docker images of the agents

​
Installation Guide

There are two ways you can install a node: Quick Installation (recommended) and Manual Installation.

​
Quick Installation

Install the latest version of Silvana with a single command:
curl -sSL https://raw.githubusercontent.com/SilvanaOne/silvana/main/install.sh | bash
Or with wget:
wget -qO- https://raw.githubusercontent.com/SilvanaOne/silvana/main/install.sh | bash
This script will:
  • Automatically detect your OS (Linux or macOS) and architecture (ARM64 or x86_64);
  • Download the appropriate binary from the latest GitHub release;
  • Install it to /usr/local/bin/silvana;
  • Verify the installation.
Supported Platforms:
  • Linux ARM64 (aarch64);
  • Linux x86_64 (amd64);
  • macOS Apple Silicon (M1/M2/M3/M4).

​
Manual Installation

If you choose to install manually:
  1. Go to the releases page.
  2. Download the archive suitable for your platform:
  • silvana-arm64-linux.tar.gz for Linux ARM64;
  • silvana-x86_64-linux.tar.gz for Linux x86_64;
  • silvana-macos-silicon.tar.gz for macOS Apple Silicon.
  1. Extract and install using these commands:
# Download (replace with your platform's file)
curl -LO https://github.com/SilvanaOne/silvana/releases/latest/download/silvana-arm64-linux.tar.gz

# Extract
tar -xzf silvana-arm64-linux.tar.gz

# Install
sudo mv silvana /usr/local/bin/

# Make executable
sudo chmod +x /usr/local/bin/silvana

# Verify
silvana --version
  1. To install a specific version instead of the latest one, run this command:
curl -sSL https://raw.githubusercontent.com/SilvanaOne/silvana/main/install.sh | VERSION=v0.1.0 bash
  1. After installation, verify the version works by doing this:
silvana --version
silvana --help

​
Uninstall

To remove Silvana, run this command:
sudo rm /usr/local/bin/silvana

​
Troubleshooting

Below are the most common issues you may encounter, along with the ways to address them.

​
Permission Denied

If you get a permission error, make sure the binary is executable:
sudo chmod +x /usr/local/bin/silvana

​
Command Not Found

If silvana is not found after installation, add /usr/local/bin to your PATH:
export PATH=$PATH:/usr/local/bin
echo 'export PATH=$PATH:/usr/local/bin' >> ~/.bashrc  # or ~/.zshrc

​
SSL/TLS Errors

If you encounter SSL errors during download, you can use the insecure flag (not recommended for production):
curl -sSLk https://raw.githubusercontent.com/SilvanaOne/silvana/main/install.sh | bash

​
Running Silvana Node

After installation, you’re ready to run the app. To start a Silvana coordinator node, run this:
silvana start
This command will:
  • Fetch configuration from the Silvana RPC server for your network (devnet by default);
  • Auto-generate Sui keypair if not present (saved to .env);
  • Request funds automatically from the devnet faucet (10 SUI);
  • Initialize services including job searcher, Docker processor, and gRPC server;
  • Launch monitoring for jobs on the blockchain.

​
First-Time Setup

If you’re running silvana start for the first time, follow these steps:
  1. Enter this command:
Fetching configuration for chain: devnet
Successfully fetched 16 configuration items
SUI credentials not found, generating new keypair...
Generated new Sui keypair:
   Address: 0x3f176926a223d730fea3998da1791f4c7517e73bf3472e233a316d8672275683
Saved credentials to .env file
Requesting funds from devnet faucet...
Faucet request successful!
   Transaction: GGRwF1ybif9nRsjiJEneBguQppzKLkWVzxSZmToj1mLH
   🔗 Explorer: https://suiscan.xyz/devnet/tx/GGRwF1ybif9nRsjiJEneBguQppzKLkWVzxSZmToj1mLH
  1. Specify the network you’re about to use:
# Devnet (default)
silvana start --chain devnet

# Testnet
silvana start --chain testnet

# Mainnet
silvana start --chain mainnet
  1. If you have existing Sui credentials, create a .env file:
# .env
SUI_ADDRESS=0x...your-address...
SUI_SECRET_KEY=suiprivkey1...your-private-key...
SUI_CHAIN=devnet
  1. To join a specific Silvana registry (e.g., shared devnet), run this command:
# Get the shared devnet registry
silvana config

# Add to your .env:
SILVANA_REGISTRY=0x916a3b24de8165fb6fb25d060ec82b50683dc9e9cebf0dfae559f943ee32adb2
SILVANA_REGISTRY_PACKAGE=0x32f8ad21df94c28401912c8ffebcc3bd186f5bf7da0995057a63755005937025
  1. Process all jobs from your registry:
silvana start
  1. Process jobs only from a specific app instance:
silvana start --instance 0xaacf350ac6ae669ebf9804b455b0bc75a71f28a34bdc48d87ca78f1f90ba0f3b
  1. Run as a dedicated settlement node:
silvana start --settle
During the startup, the coordinator performs these initialization steps:
  1. Configuration Loading: fetches and injects environment variables from RPC server.
  2. Sui Connection: connects to the Sui blockchain RPC endpoint.
  3. Balance Check: verifies sufficient SUI balance for operations.
  4. Gas Coin Pool: splits large coins into smaller ones for better transaction performance.
  5. Service Startup:
    • Job Searcher: monitors blockchain for new jobs.
    • Multicall Processor: batches operations for efficiency.
    • Docker Buffer: manages container execution.
    • Event Monitor: watches blockchain events.
    • gRPC Server: provides API for agent communication.
    • Periodic Tasks: ensures reconciliation, block creation, proof analysis.

​
Monitoring

Once running, you’ll see logs indicating job processing:
JobCreated: seq=4, dev=AddDeveloper, agent=AddAgent/prove, app_method=add
Starting Docker container for buffered job 1: AddDeveloper/AddAgent/prove
Job 1 started and reserved for Docker session

​
Troubleshooting

The coordinator may fail to start for a number of reasons. This is what you can do in each of these situations:
  • Missing credentials: will auto-generate on devnet, or check your .env file.
  • Insufficient balance: run silvana faucet sui --address 0x....
  • Connection issues: verify network connectivity to RPC endpoints, gRPC TCP protocol is used for connection that requires streaming support and a continuous TCP connection.
  • Docker errors: ensure Docker daemon is running.
  • Registry not found: check SILVANA_REGISTRY and SILVANA_REGISTRY_PACKAGE values.

​
Next Steps

After starting your Coordinator, do this:
  1. Create a new project: silvana new myproject.
  2. Deploy an application: follow the Add Example.
  3. Monitor jobs: use silvana jobs --instance <your-app-instance>.
  4. Check balances: silvana balance sui.
For detailed application development, see the examples documentation.

​
Features

This is what you have with Silvana:
  • gRPC server and client: gRPC, gRPC-Web;
  • TiDB Serverless database: store events, query, fulltext search;
  • NATS JetStream on nats and wss;
  • Internal buffering in memory for batch processing;
  • Protobuf definitions and reflection on endpoint and in Rust code;
  • Monitoring: logs to file/console, logs/metrics via OpenTelemetry gRPC push/REST pull, Grafana/Prometheus/BetterStack support for logs and dashboards.

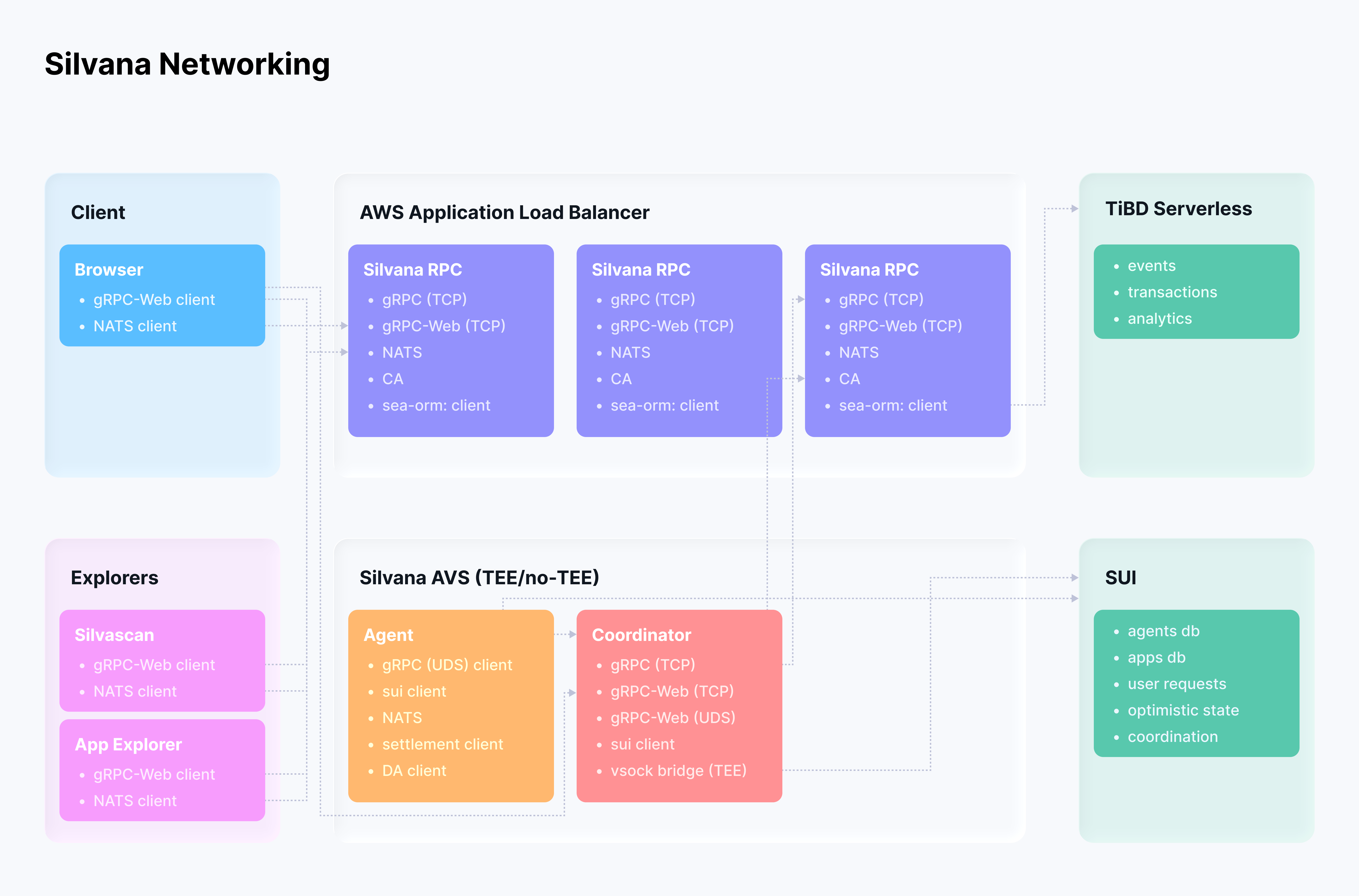

The diagram below illustrates the Silvana Networking architecture. Silvana Networking Scheme

​
Performance

The table below features how Silvana performs:
IndicatorValue
Responce time for any operation, including adding event, query event, fulltext search100–200
Events per second10,000
Low-load RAM consumption200 MB
High-load RAM consumption (1 mln events)300 MB
CPU load<20–30% on thousands of events per second

​
Deployment

To deploy an app, follow the instructions below.
  1. Cross-build Rust executable using Docker and upload it to S3
make build-rpc
  1. Run pulumi script to:
  • Create AWS Stack, including EC2 instance;
  • Install certificates, NATS, Silvana RPC;
  • Configure and run services.
mpulumi up

​
Protobuf

Follow this workflow to use Protobuf:
  1. Create proto definitions.
  2. Compile with make regen for Rust and buf lint && buf generate for TypeScript - definitions will be compiled to SQL, SQL migrations, Rust interfaces with reflection and server/client, TypeScript interfaces and client, sea-orm interfaces for TiDB.

​
Examples of clients
